Patented pre-heating air supply fan that mixes incoming fresh air with existing air up close the room ceiling, which is the most efficient way to take advantage of the excess energy inside the room.
A quiet and very efficient fan mixes pre-existing warm indoor air with the incoming cool fresh air supply and directs the airflow towards the ceiling.
Low power 1.0 W
Fresh air filter
Silent 27 dB(A)

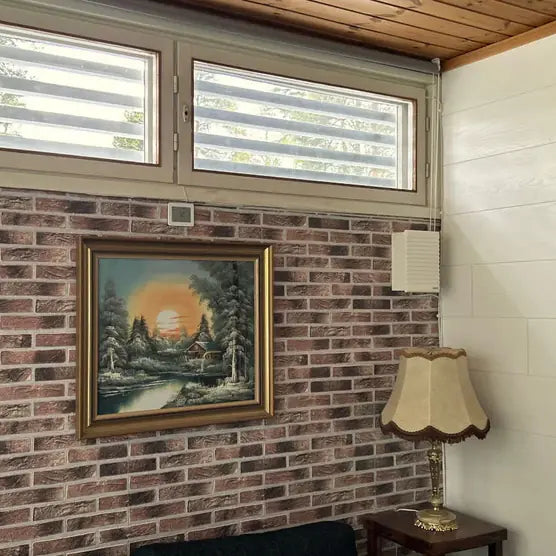

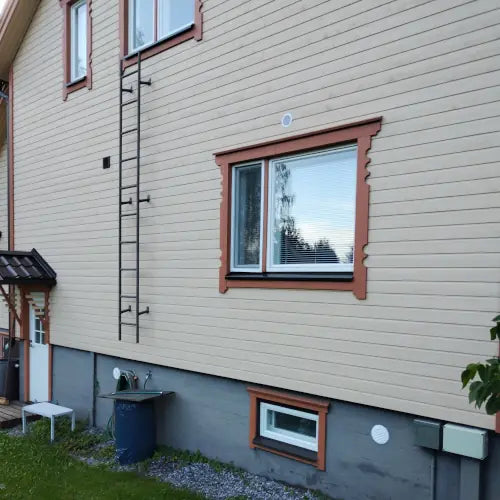

Installed on the outer wall of the room. Hole is drilled for the air supply duct. The unit is placed onto the hole and the power supply is plugged in—the unit is now ready to use. Low voltage DC power cable is thin and easy to hide. Filter inside of the fresh air duct should be changed 1–2 times per year.
M5 / ePM10 60% filter installed inside of the fresh air duct.
Silencer and airflow limiter installed inside of the fresh air duct.
Material: Ewona
Diameter: ⌀103 mm
Length: 370 mm
Optional insect net also included
8,5 V DC, 1,3 m power cord (7,5 m extension cord).
Fastening screws for the unit and outdoor air grille.
|
Total airflow |
20 dm3/s from which 6–12 dm3/s is outdoor air |
|---|---|
|
Power consumption |
1,0 W |
|
Sound level |
27 dB(A) |
|
Filter class |
M5 / ePM10 60% (ISO 16890) |
|
Coupling |
Plug adapter 8.5 V DC, 1.3 m power cord (7.5 m extension cord) |
Please read the the owner's manual for more information.
Product code: M2030S
LVI-number: 7929033
Replacement filter:
MOBAIR S2040
Please see all of the authorized MOBAIR resellers or contact us if you have any questions.
